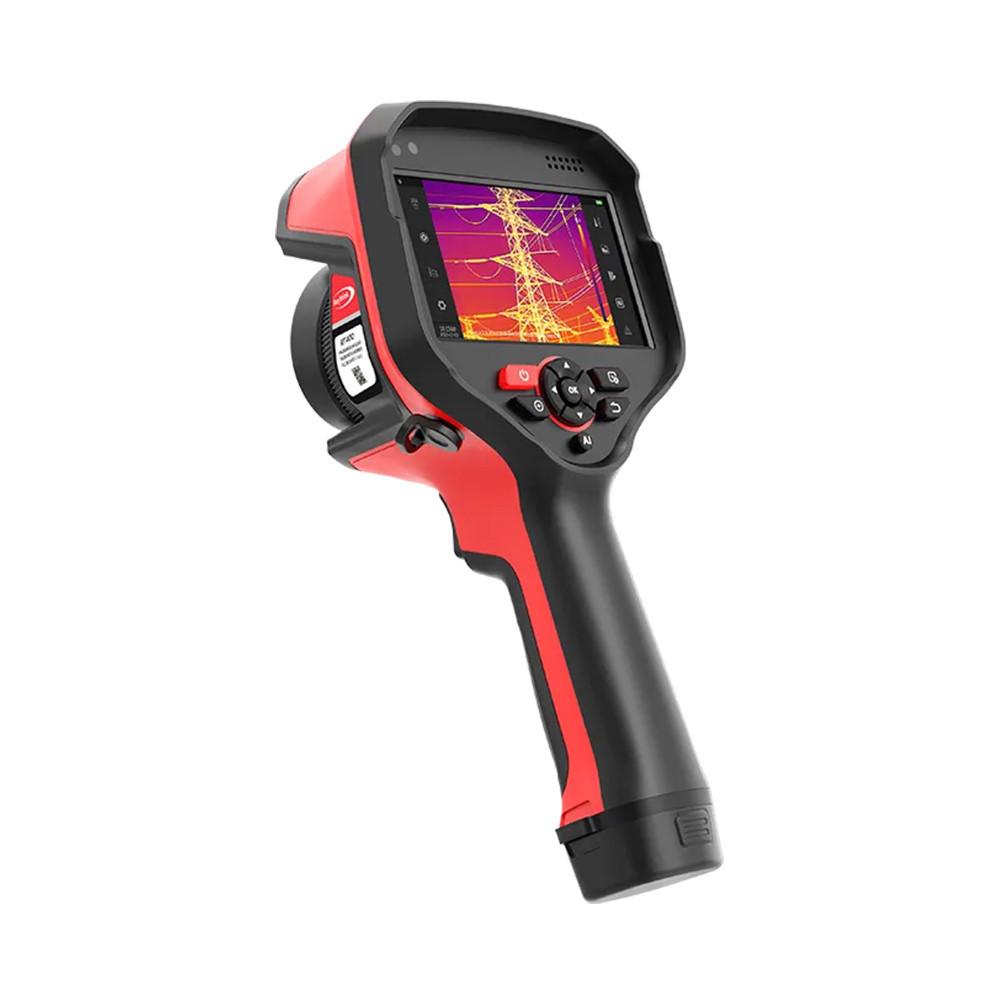

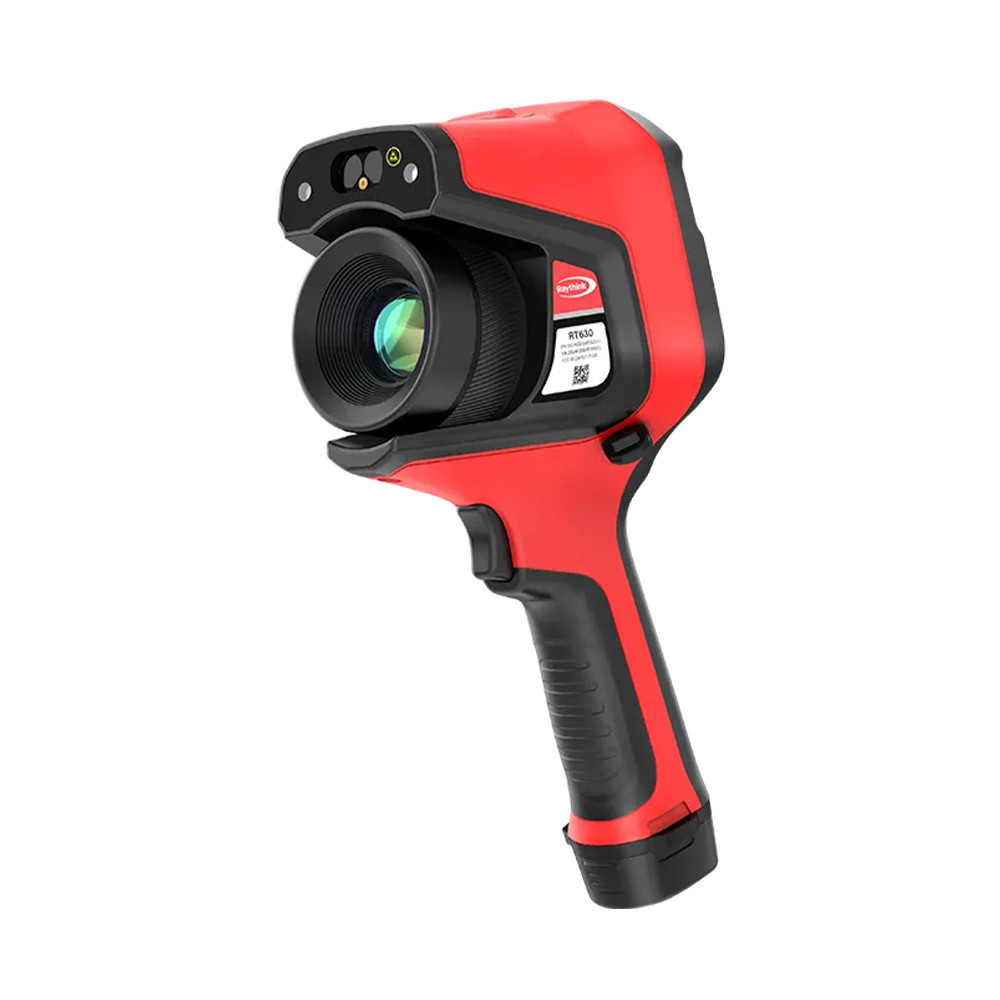

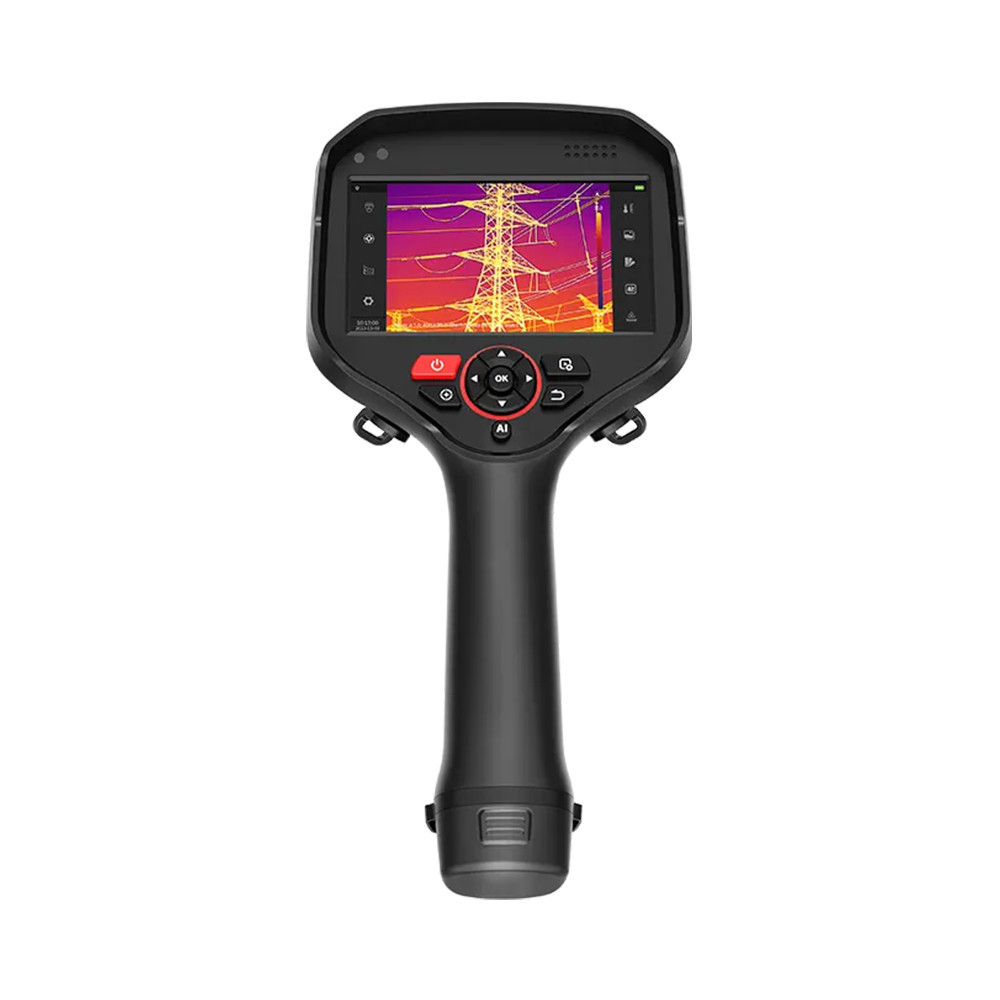

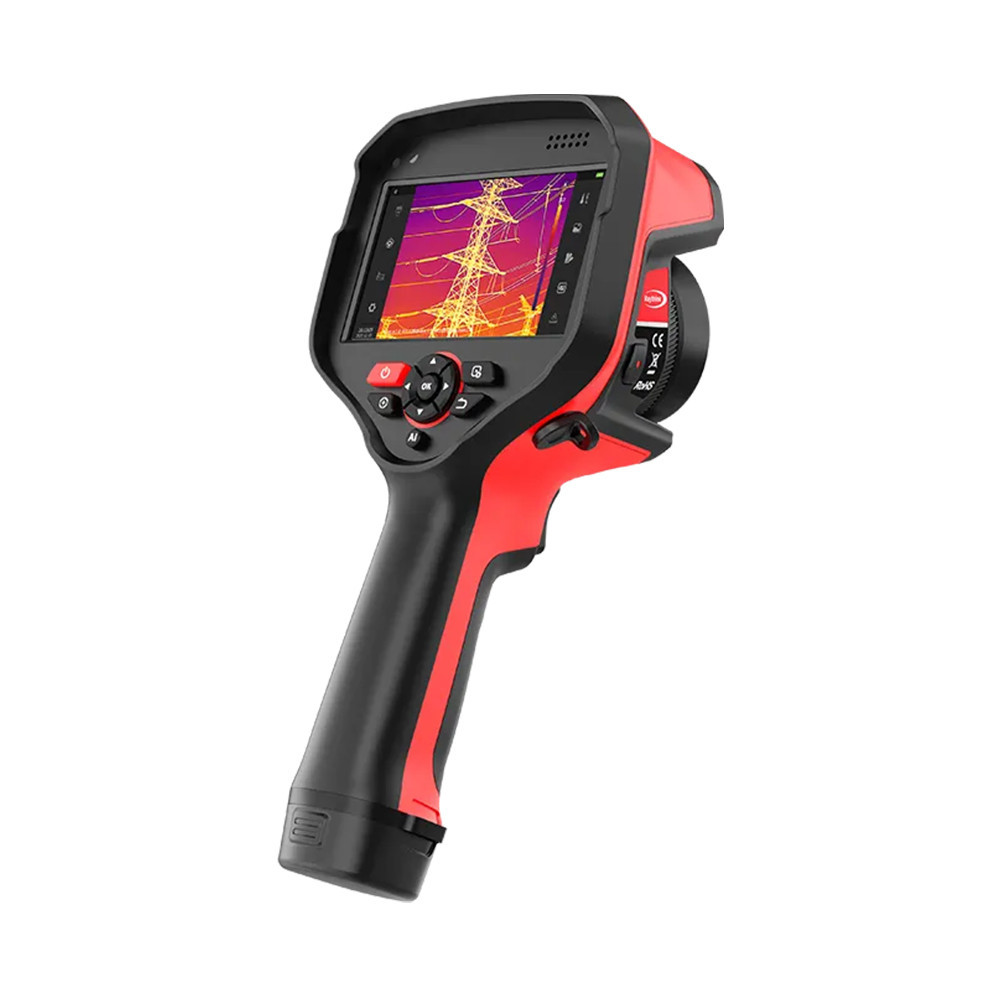

Raythink RT630 industrial thermal camera

Article No.:
RTKRT630
Thermal sensor: 640x512 12μm
Thermal sensor NETD: 35 mK
Screen: 5 inch 1280×720 OLED
2 599 900 Ft
Available for order
Credit calculator
Additional products
Details

RT630 Expert Thermal Camera

Equipped with a new-generation detector with a high resolution of 640×512 and a NETD as low as 35mK, the new RT630 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.

Clear Thermal Images, Precise Temperature Measurement

Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512, supporting super resolution.
NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).

Various Lenses and Fast Focusing

Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
Support macro lenses, flexible for diverse scenarios.

Functional Upgrade to Improve Efficiency

Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.
Support up to 20 points/lines/areas to analyze more temperature details in the screen.

Info
Data storage:
64GB SD card, with a maximum extension capacity of 2TB
Other properties:

Picture modes: Thermal imaging, PIP, thermal fusion, visible light

Tripod thread:
yes
Bluetooth:
yes
Connectors:
USB 3.0, Micro HDMI
Digital zoom:
1‒10 times
Power supply:
10000mAh lithium-ion battery, replaceable
Recording file formats:
.MP4 . JPG . IRV
Resolution:
4224×3136 (13 megapixel digital camera)
Manufacturer:
InfiRay
Manufacturer's warranty:
3-year general warranty for the device, 10 years for the sensor, 2 years for the battery
Manufacturer's article number:
T630
IFOV:
0.68 mrad
Image repetition frequency:
30 Hz
Screen color modes:
19 modes
Látószög (°):
25
Measurement properties:

IFOV: 0.92 mrad

Measurement Range:



Low temperature range: -20°C~+150°C
High temperature range: 100°C~650°C
Automatic (optional: : -20~1500°C)

Measurement Accuracy: ±2°C or 2%
Temperature Scale: Automatic, manual, accurate

Dimensions:
14.4 × 12.9 × 30.7 cm
Microphone:
yes
Spectral (wavelength) range:
7.5- 14 µm
Sensor:
480 x 360 pixel, 12 pixelsize NETD: 35 mK
In the box:

thermal camera, USB cable, 64 GB micro SD card, hand strap, Bluetooth headset

Rangemaster options:

Laser Rangefinding: 905nm ;  0.05-50 m ; accuracy: ±1 mm

Weight (kg):
1.3 kg (including battery)
Operating time:
up to 3 hours
Water resistance:
IP54
Wi-Fi:
yes
