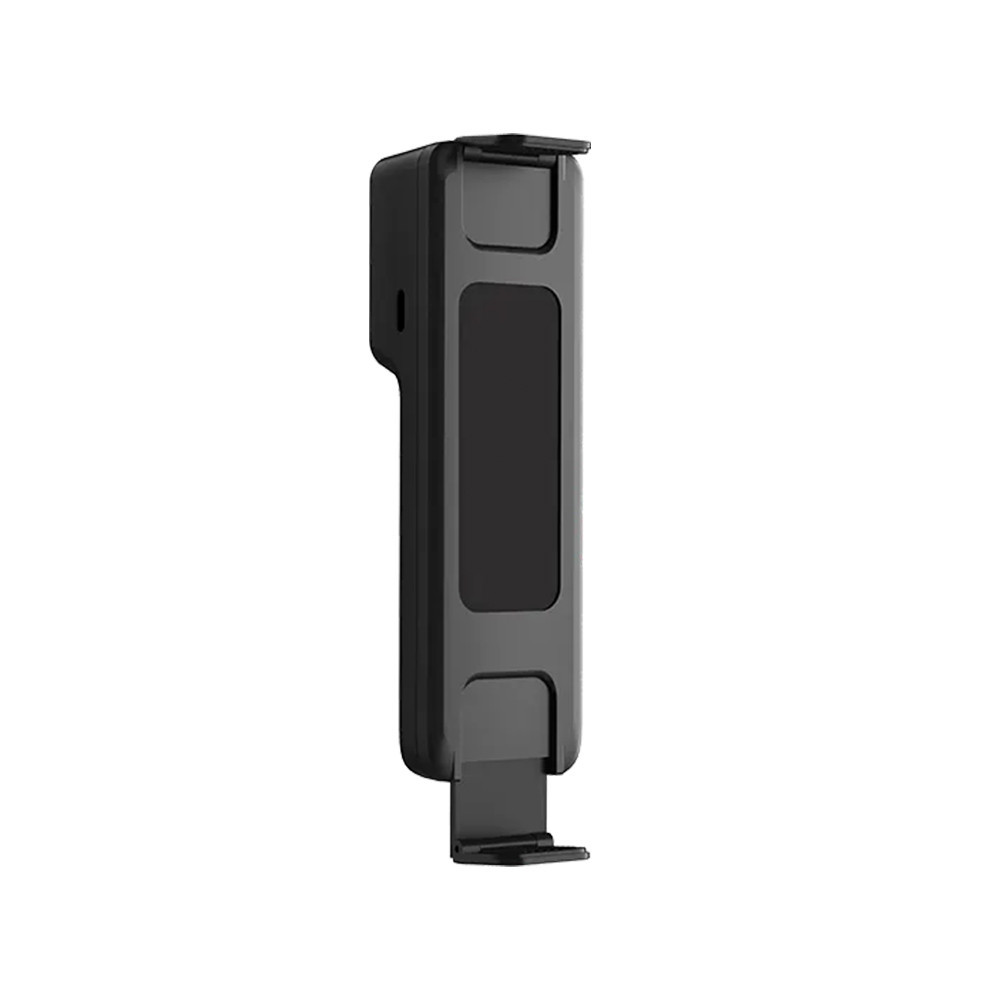

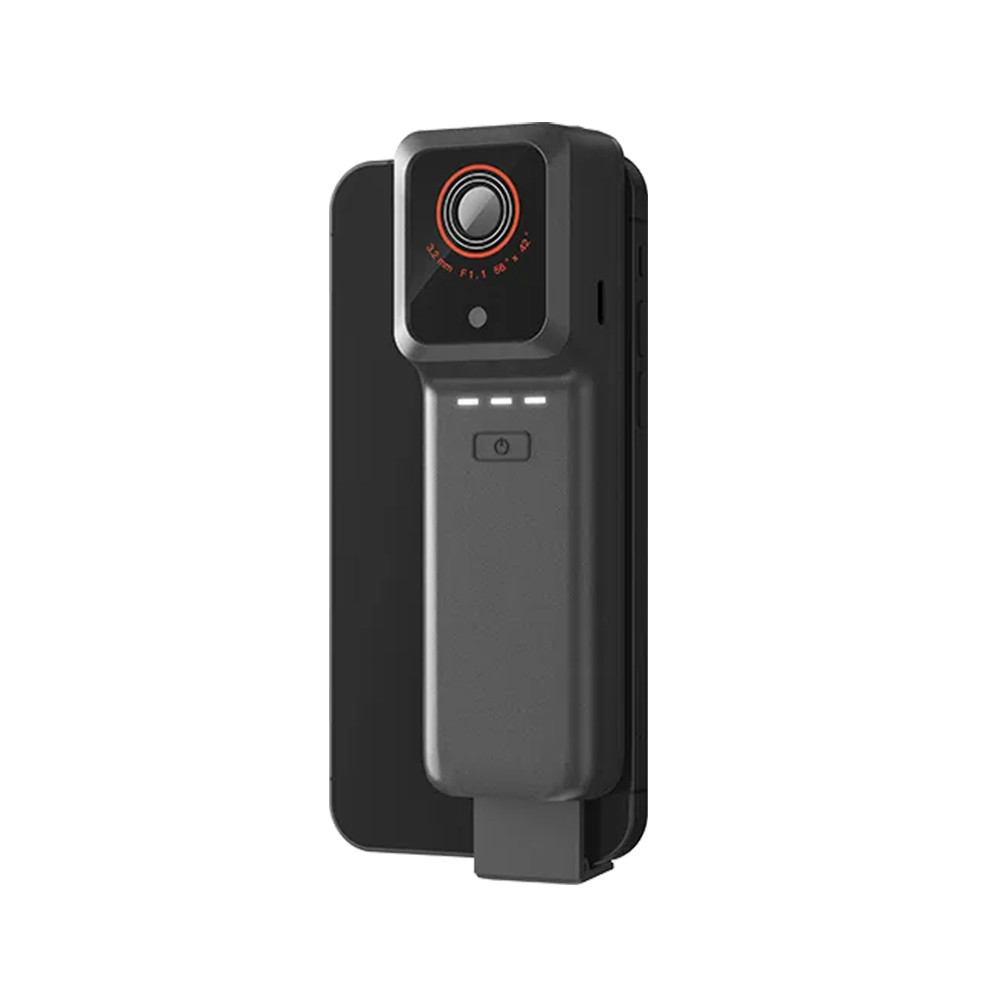

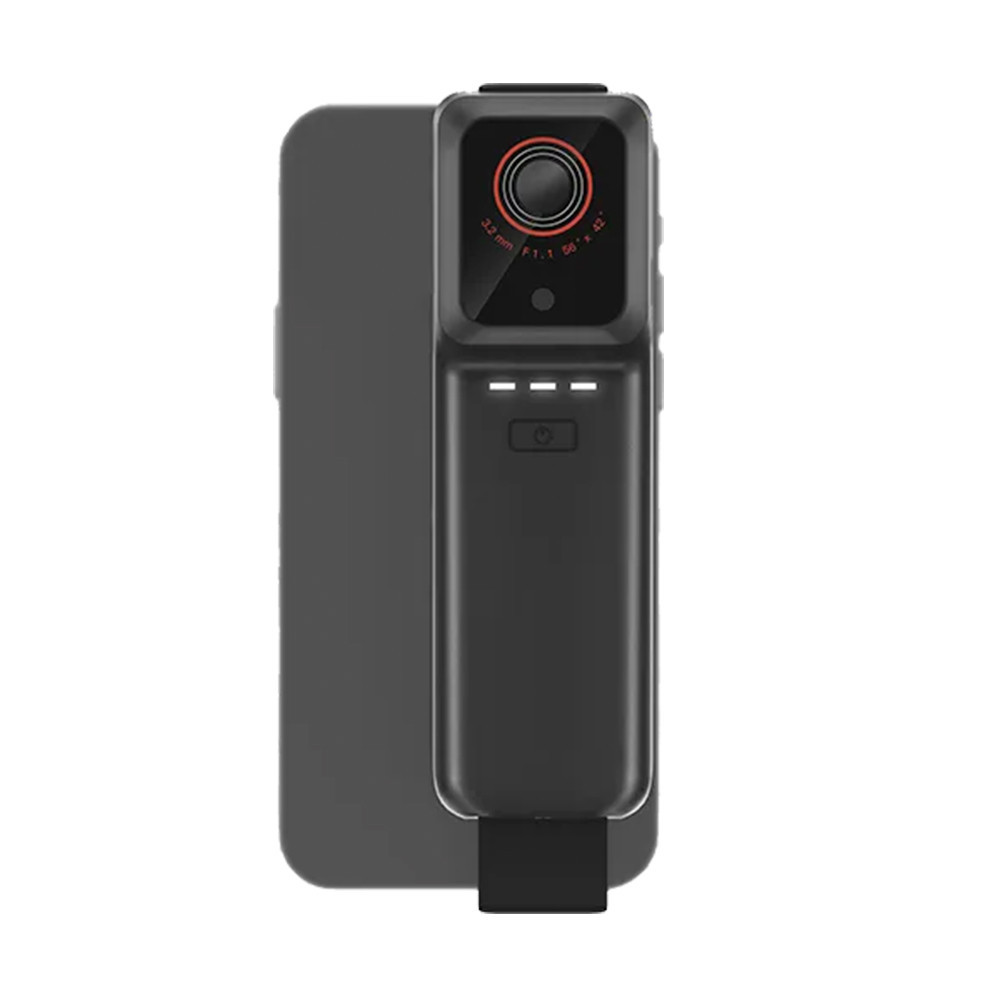

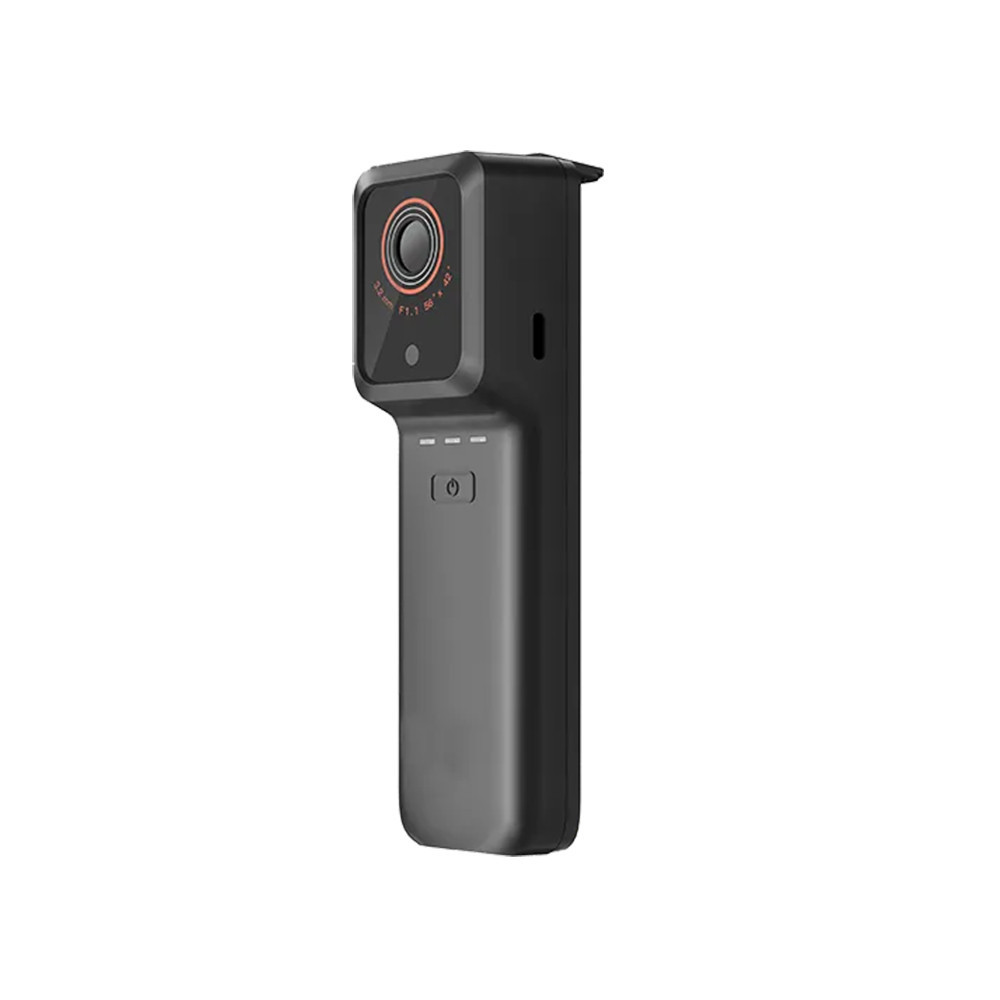

Raythink IX2 Air Wireless Thermal Camera for Smart devices

Article No.:
RTKIX2
Thermal sensor: 256x192 12μm
Thermal sensor NETD: 40 mK
159 901 Ft
In stock
Credit calculator
Additional products
Details
  • Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios.
  • It supports wireless image transmission and operation.
  • With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

Wireless Measurement, Unlocking New Scenarios

  • Image transmission delay < 300ms.
  • With 2 hours of battery life, productivity is always alive.
  • The fuselage comes with a back clip and standard threaded holes, which can be matched with various accessories to facilitate users to observe targets at different angles.

Hard-core Configuration, Easy to Use and Convenient

  • IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand.
  • Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
  • Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.

Clear Thermal Images, Precise Temperature Measurement

  • Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
  • 40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
  • Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
Info
Battery:
1050mAh
Tripod thread:
yes
Connectors:
USB-C
EAN code:
6977672460170
Resolution:
2 megapixel
Manufacturer:
Raythink
Manufacturer's warranty:
2 year manufacturer's warranty
IFOV:
3.75 mrad
Image repetition frequency:
25 Hz
Screen color modes:
7 modes
Látószög (°):
56°×42°
Measurement properties:

IFOV: 3.75 mrad

Measurement types: Central temperature point/Highest temperature point/Lowest temperature point /3 custom points

Low temperature range: -20~+150°C
High temperature range: 100~550°C

Accuracy: ±2% or ±2°


Working / storage temperature:
-10°C to +50°C / -20°C to +60°C
Sensor:
256x192 pixel, 12μm pixelsize <40mK
Color:
black
In the box:

USB cable

Weight (g):
132
Drop test:
fall resistance 2 m
Operating time:
up to 2 hours
Water resistance:
IP54
Raythink IX2 Air Wireless Thermal Camera for Smart devices
