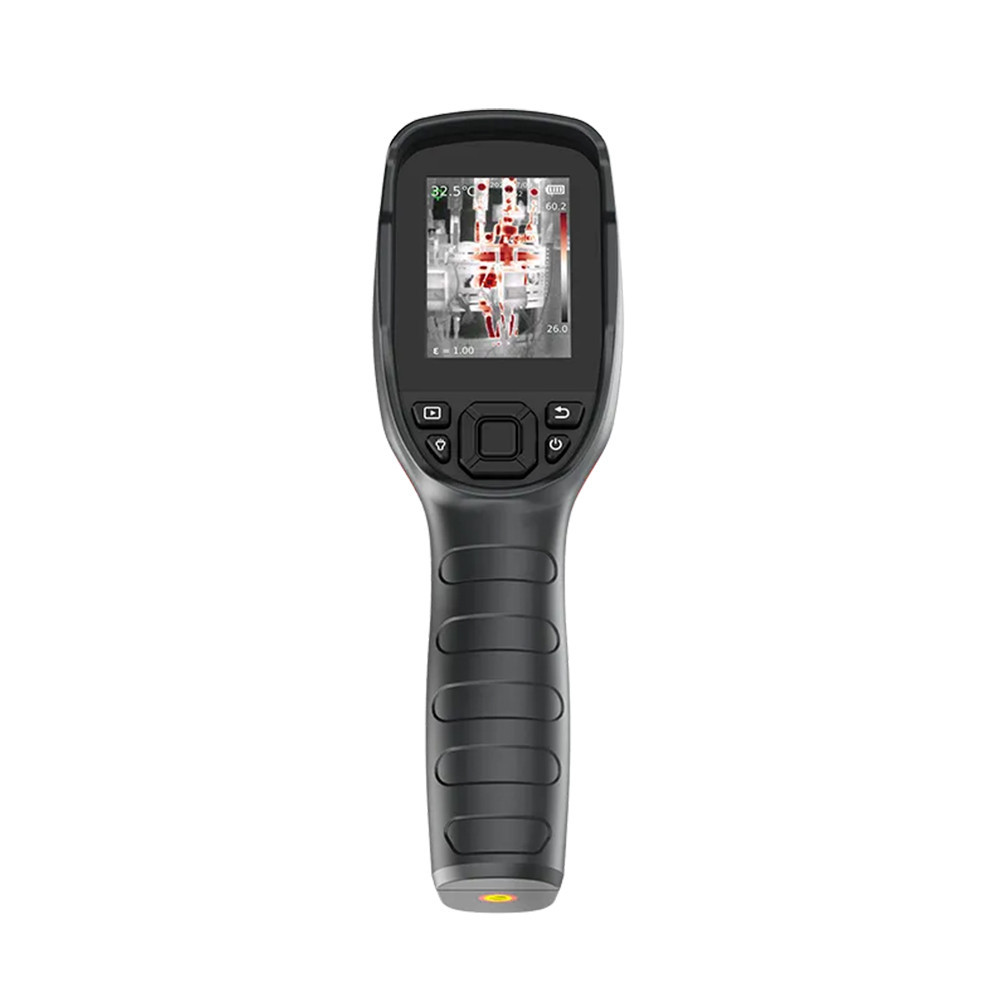

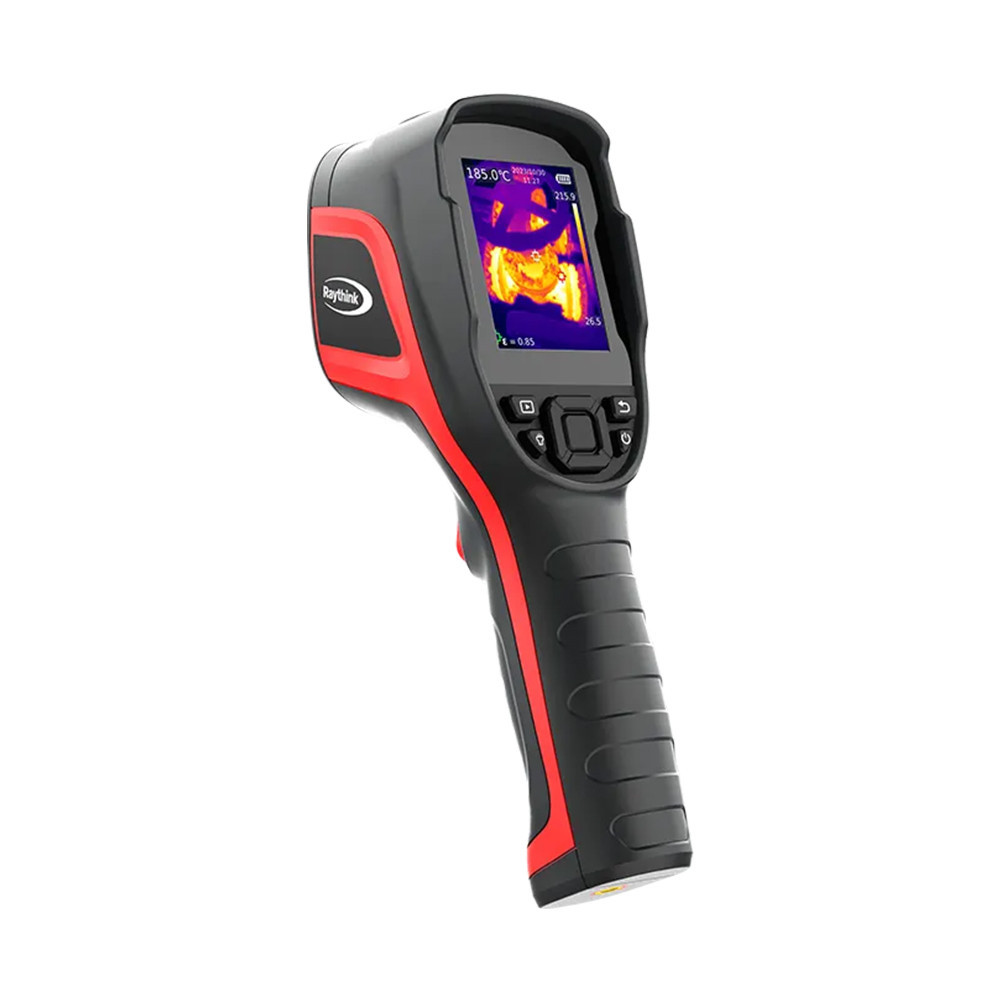

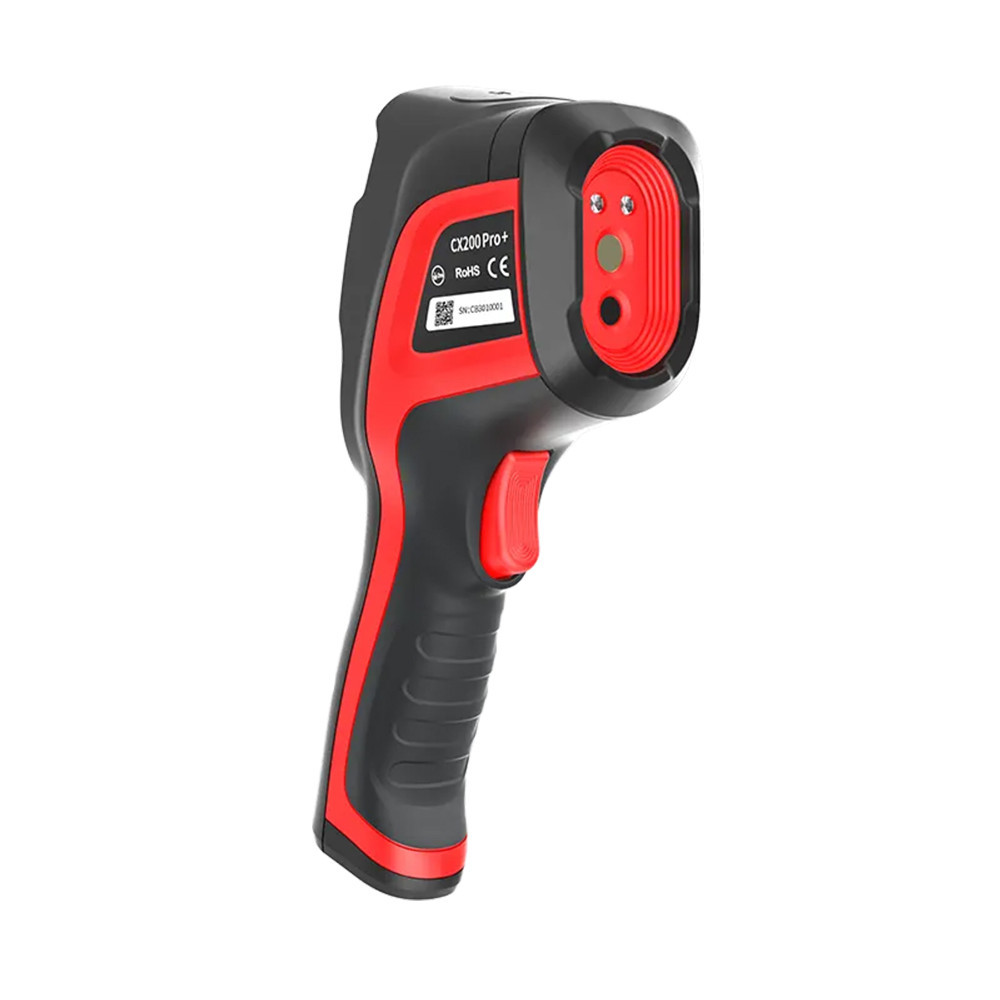

Raythink CX200 PRO+ industrial thermal camera

Raythink CX200 PRO+ industrial thermal camera

Name: Raythink CX200 PRO+ industrial thermal camera
Brand: Raythink
SKU: RTKCX200PROPLUS
Price: 199901 HUF
Availability: InStock

Article No.:

RTKCX200PROPLUS

Thermal sensor: 256x192 12μm

Thermal sensor NETD: 40 mK

Screen: 2.8'' color LCD 320x240 pixel

199 901 Ft

In stock

Details

Equipped with a high-sensitivity infrared detector with a resolution of 256×192, based on an intelligent image algorithm, the CX200 Pro+ handheld thermal camera can generate clearer and sharper thermal images.
The product has been completely upgraded to give users a better experience.

Equipped with a self-developed 12μm 256×192 uncooled infrared detector.
NETD as low as 40mK, capturing smaller temperature differences.
Intelligent image algorithm applied, displaying clearer details of temperature measurement targets and sharper images.
With the innovative Al real-time super-resolution technology, the resolution jumps to 320×240 to provide clearer infrared images.

Applications of C200+ SERIES Handheld Thermal Imager

Shorter startup duration of 6s and smooth operation response.
Support automatic switching of temperature measurement modes for efficient operations.
Support built-in video taking to facilitate analysis and recording.

IP54 waterproof and dustproof, and 2m drop protection
A battery life of 15 hours
Built-in 32GB memory card, expandable to 128GB

Shorter startup duration of 6s and smooth operation response.
Support automatic switching of temperature measurement modes for efficient operations.
Support built-in video taking to facilitate analysis and recording.

Support complete secondary analysis software for PC
Support thermal image transmission & analysis applications for mobile devices

Info

Data storage:

32GB MicroSD card, expandable to 128GB

Other properties:

Picture modes: Infrared, dual-spectrum fusion, visible light, PIP

App and Wi-fi supported

Tripod thread:

yes

Connectors:

USB-C

Digital zoom:

1×, 2×, 4×

EAN code:

6977672460064

Recording file formats:

mp4

Resolution:

2 megapixel

Manufacturer:

Raythink

Manufacturer's warranty:

3-year general warranty for the device, 10 years for the sensor, 2 years for the battery

Manufacturer's article number:

CX200PROPLUS

IFOV:

3.8 mrad

Image repetition frequency:

25 Hz

Screen color modes:

7 modes

Látószög (°):

56°×42°

Measurement properties:

IFOV: 3.8 mrad

Measurement types: Central temperature point/Highest temperature point/Lowest temperature point /3 custom points

Low temperature range: -20~+150°C
High temperature range: 100~550°C

Accuracy: ±2% or ±2°

Measurement Unit: Celsius, Fahrenheit, Kelvin

Dimensions:

237 × 75 × 92 mm

Operating humidity:

10% - 95%

Working / storage temperature:

-10°C to +50°C / -20°C to +60°C

Sensor:

256x192 pixel, 12μm pixelsize <40mK

Color:

red

In the box:

USB cable, 32GB SD card, user manual, storage bag

Weight (g):

520

Drop test:

fall resistance 2 m

Operating time:

up to 11 hours

Water resistance:

IP54

Raythink CX200 PRO+ industrial thermal camera

199 901 Ft

Érdekel a vadászat is? Itt sokkal többet találsz:

Raythink CX200 PRO+ industrial thermal camera

Image+：distinguish smaller temperature differences and more details

Applications of C200+ SERIES Handheld Thermal Imager

Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios

Performance+: rugged, easy to use, and quick to deploy

Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios

Software+: complete software ecosystem
