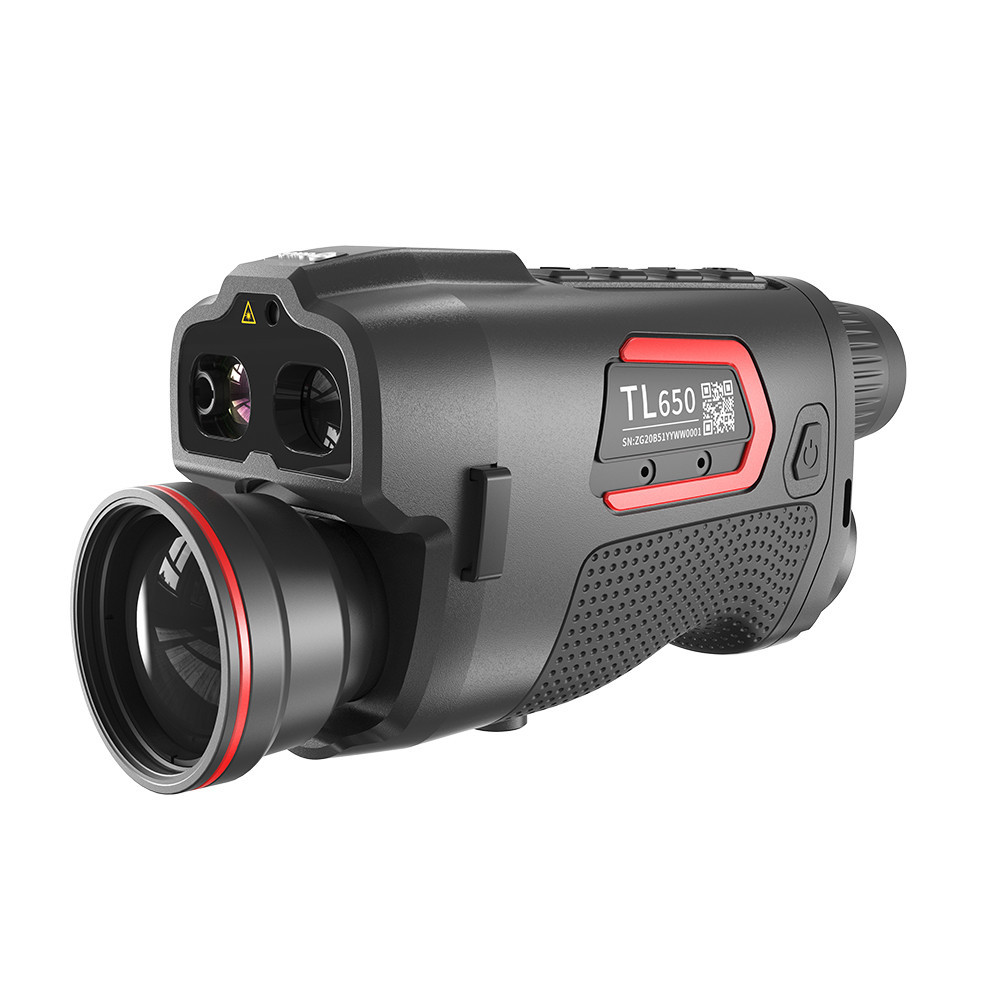

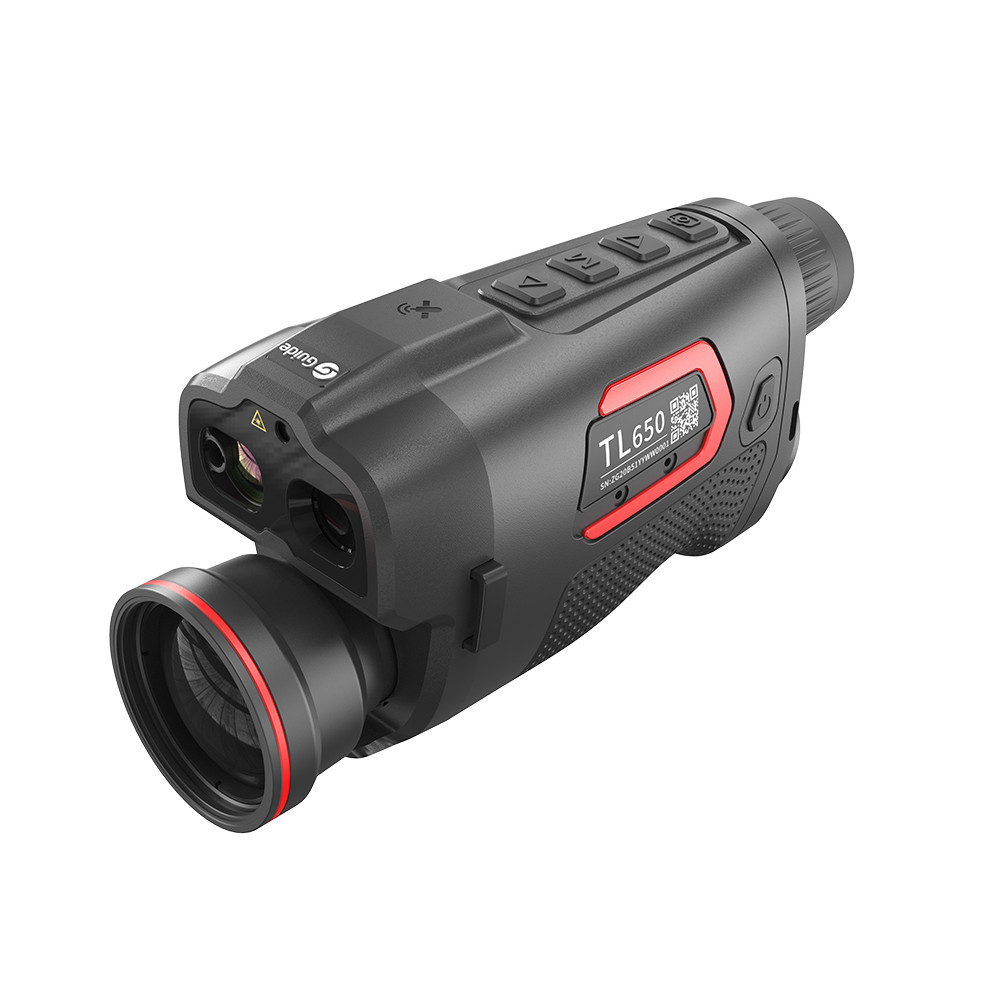

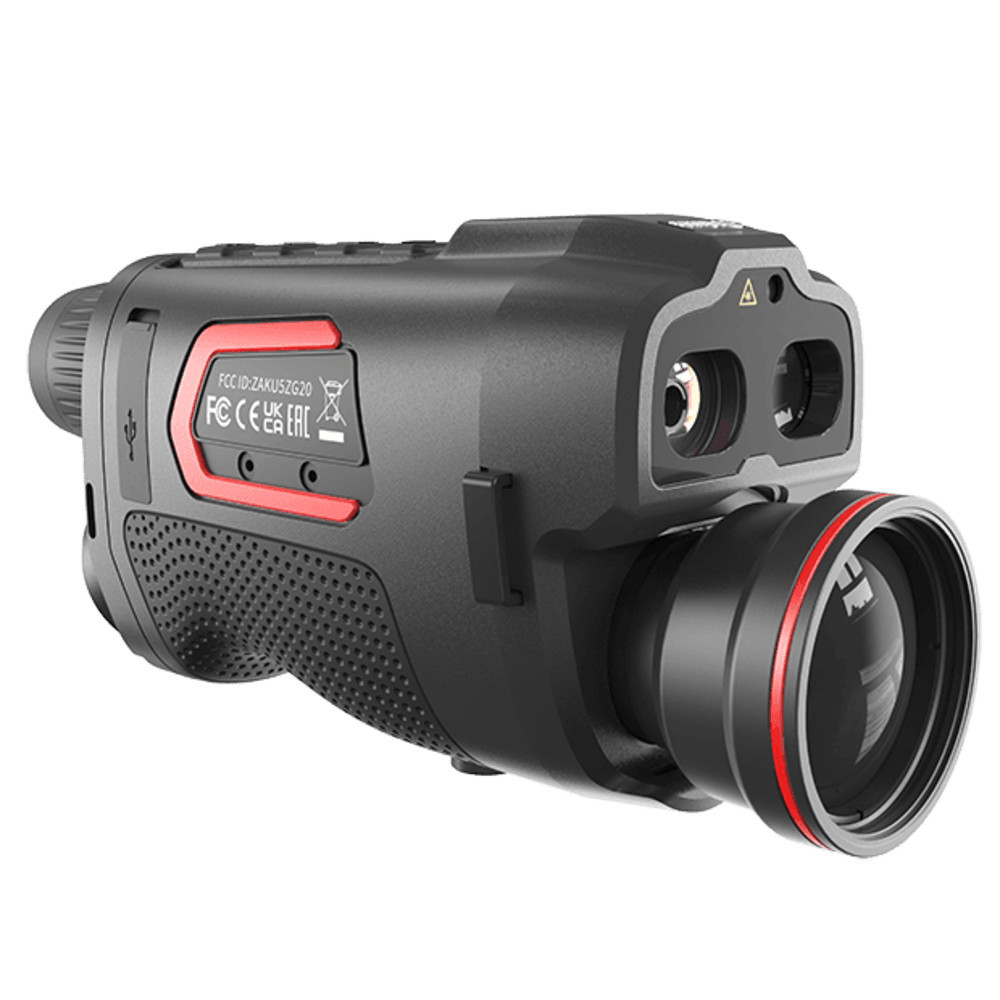

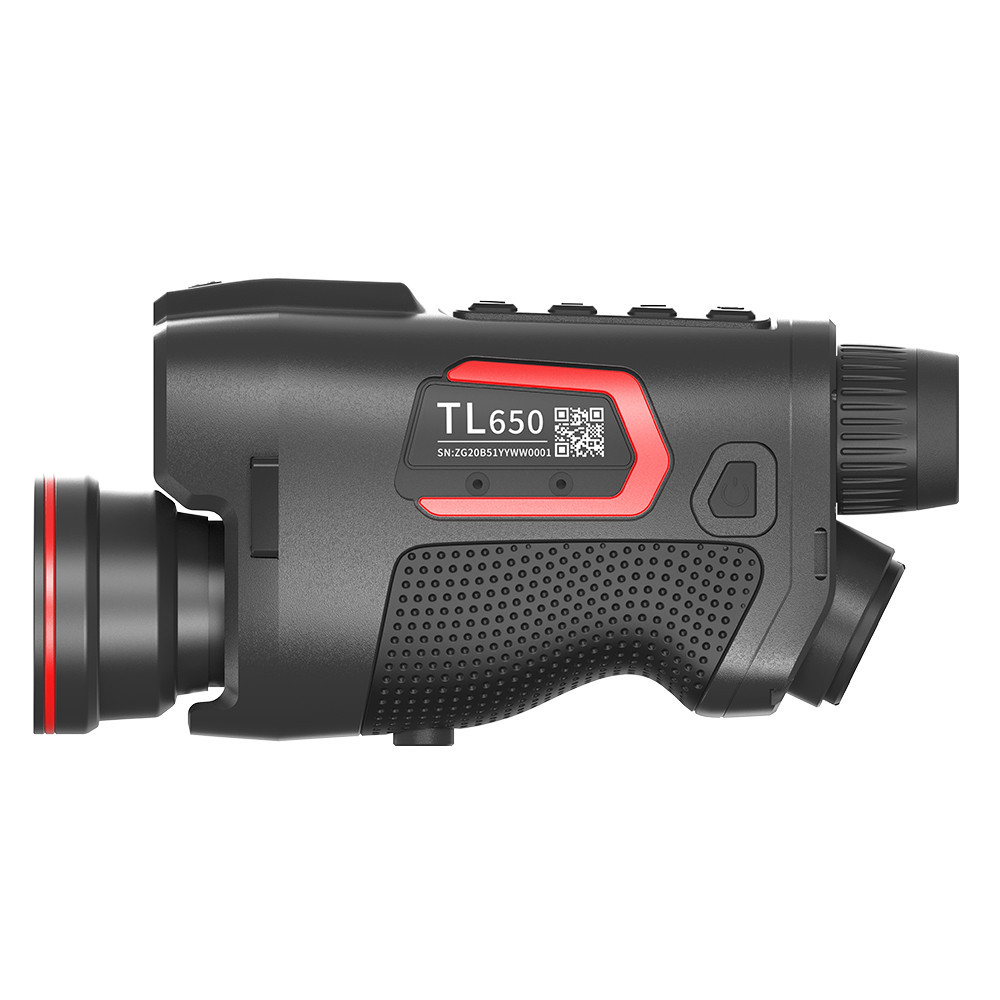

Guide TL650 LRF Thermal and Night Vision Monocular

Guide TL650 LRF Thermal and Night Vision Monocular

Name: Guide TL650 LRF Thermal and Night Vision Monocular
Brand: Guide
SKU: GUITL650
Price: 699900 HUF
Availability: OutOfStock

Article No.:

GUITL650

User's Guide:

Kattints

Thermal sensor: 640x480 12μm

Thermal sensor NETD: 30 mK

Screen: 1920×1080 AMOLED

Magnification interval (x): 2 – 16

Lens: 50 mm F/1.2, manual

Horizontal field of view (°): 8.7°

799 900 Ft

699 900 Ft

Out of stock

Details

All-in-one Design for All-day and All-weather Observation

With integrated thermal and night vision, considering both the daytime and the nighttime, for quick search and target identification.

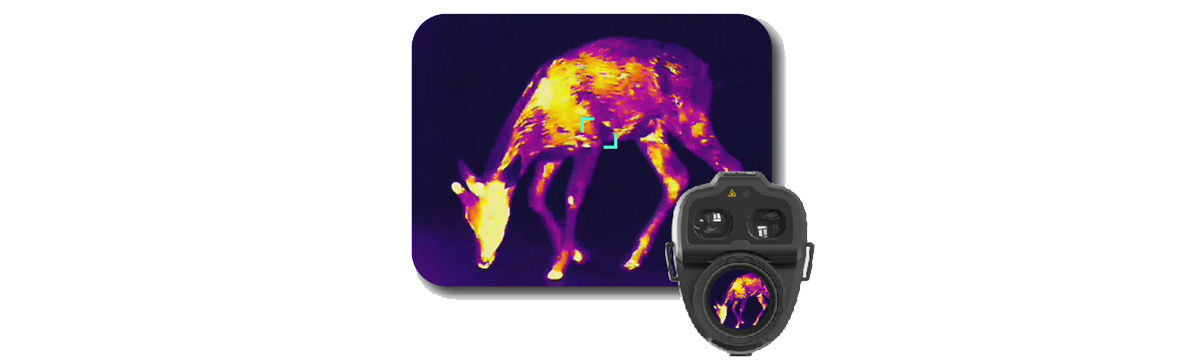

Integrated HD Thermal Detector and Digital Sensor

High-quality thermal imaging and night vision with clear distinctions allow for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape, day and night.

1920×1080 AMOLED Display

High resolution 0.39'' 1920×1080 AMOLED is capable of lower power consumption, wider viewing angle, and richer color, providing a better observation details.

Built-in Precision Laser Rangefinder

The integrated high-precision laser range module can achieve 600m accurate laser ranging, allowing for the precise distance information of targets without calibration.

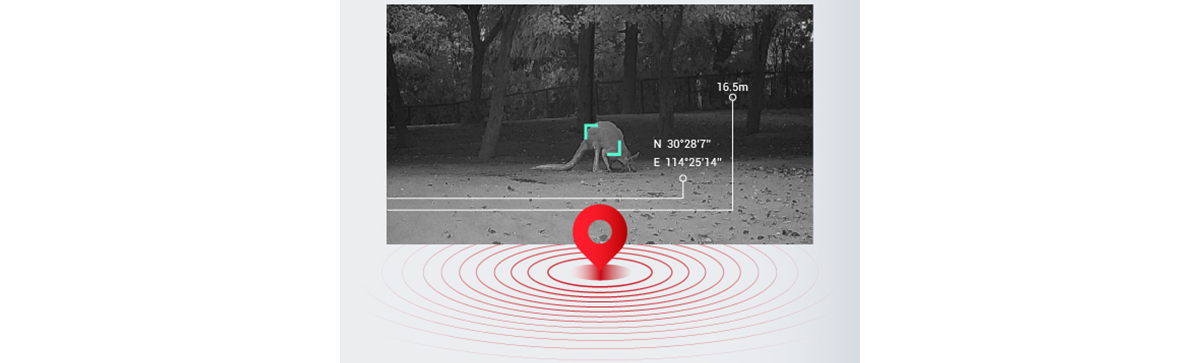

Built-in GPS for Target Positioning

GPS systems display the target latitude and longitude for accurate positioning.

Combined Multispectral Viewing Modes

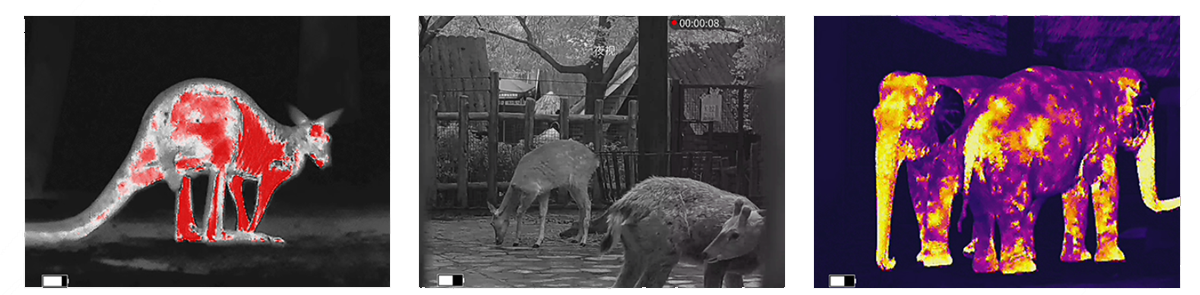

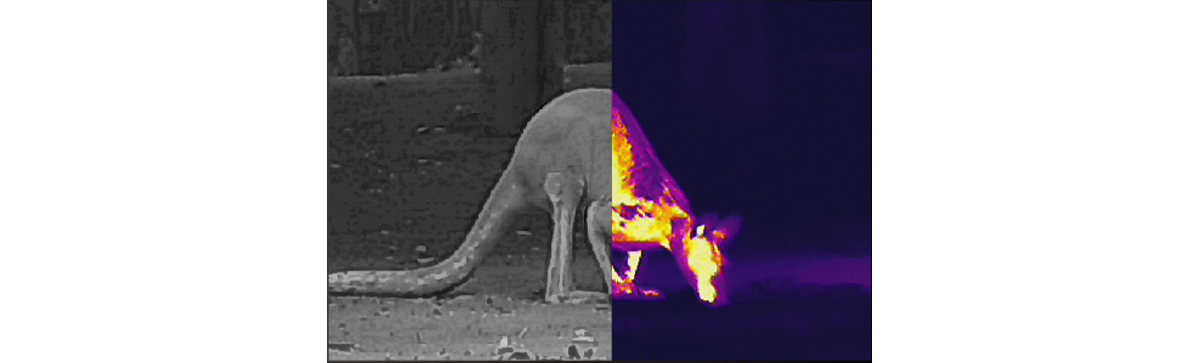

You can use the TL Series in several distinct image modes including a conventional thermal monocular with the choice of 5 color palettes, a highly detailed daylight & night vision optical camera, or the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

Info

Data storage:

up to 64 GB

Base magnification (x):

Other properties:

Photo/Video recording; GPS; Compass; Gyroscope; Bluetooth; Wi-fi

Connectors:

USB-C (charging and data transfer)

Digital zoom:

1x, 2x, 4x, 8x

Diopter compensation:

-4 - +4

Power supply:

18650 battery (included)

Detection distance:

1400 m

Manufacturer:

Guide

Manufacturer's warranty:

3 years manufacturer's warranty, 10 years for the sensor

Thermal camera type:

Monocular

Image repetition frequency:

50 Hz

Screen color modes:

5 Color Modes - Black Highlight, White Highlight, Red Highlight 1, Iron Highlight 2, Blue Highlight

Exit pupil:

15 mm

Látószög (°):

8.7°×6.6°

Dimensions:

190×70×90mm

Working / storage temperature:

-20 °C to 50 °C / -40 °C to 60 °C

Spectral (wavelength) range:

8μm - 14μm

Sensor:

CMOS 1920×1080, 4μm ; 640x480 pixel sensor with 12 μm pixel size, NETD <= 30 mK

Color:

black

In the box:

TL650 LRF, Wrist strap, Battery charger, single 18650 battery, USB Type-C cable

Rangemaster options:

600 m hatótávolság

Rangefinder:

LRF

Weight (g):

567

Drop test:

1 m

Operating time:

up to 5 hrs

Water resistance:

IP67
