Guide TE211M thermal monocular

Item number:
GUITE211M
User's Guide:

.

Thermal sensor: 256x192 12μm
Thermal sensor NETD: 30 mK
Screen: Touch screen, 1.43'' AMOLED 466×466
Field of view (m): 23 m / 100 m
Magnification interval (x): 1.2 – 4.8
Lens: 10 mm , F/1.0
Horizontal field of view (°): 13.1°

Please consult with legal authorities about the usability for hunting purposes!

159 900 Ft
Out of stock
Loan calculator
Related products
Loading…
Details

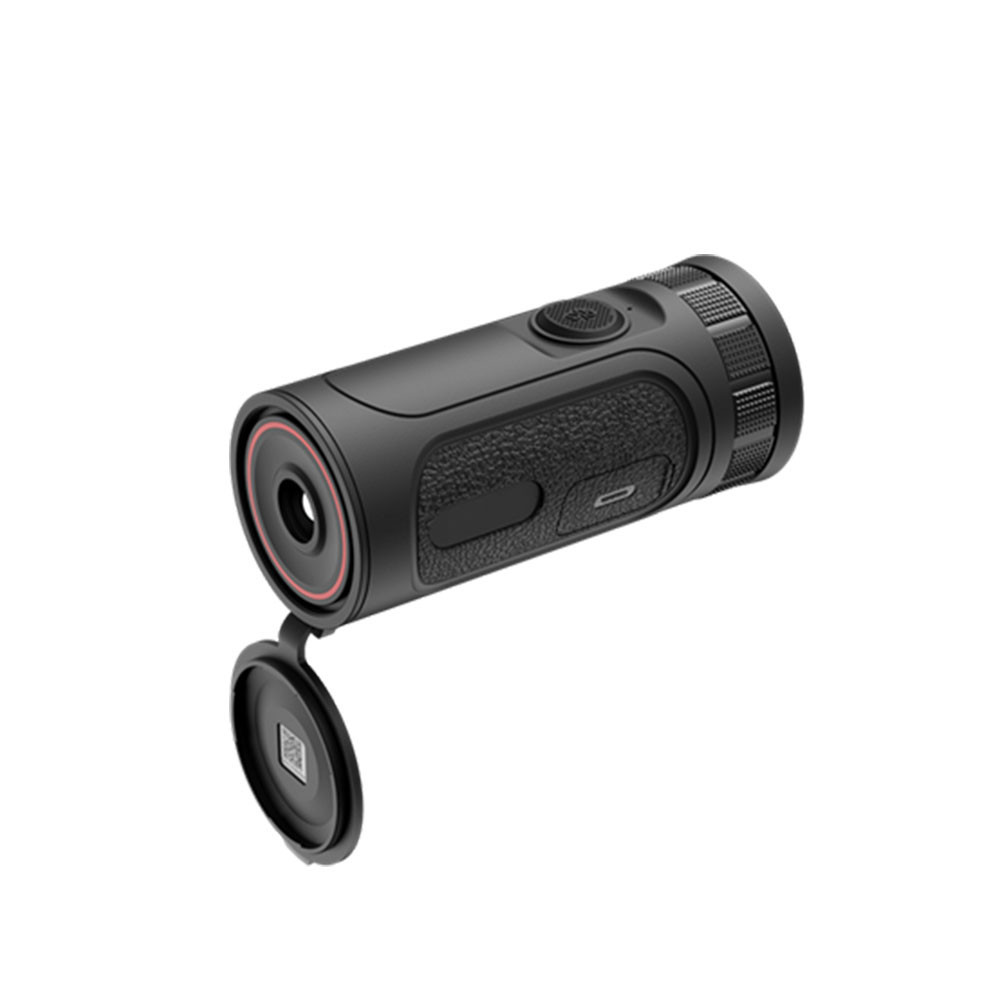

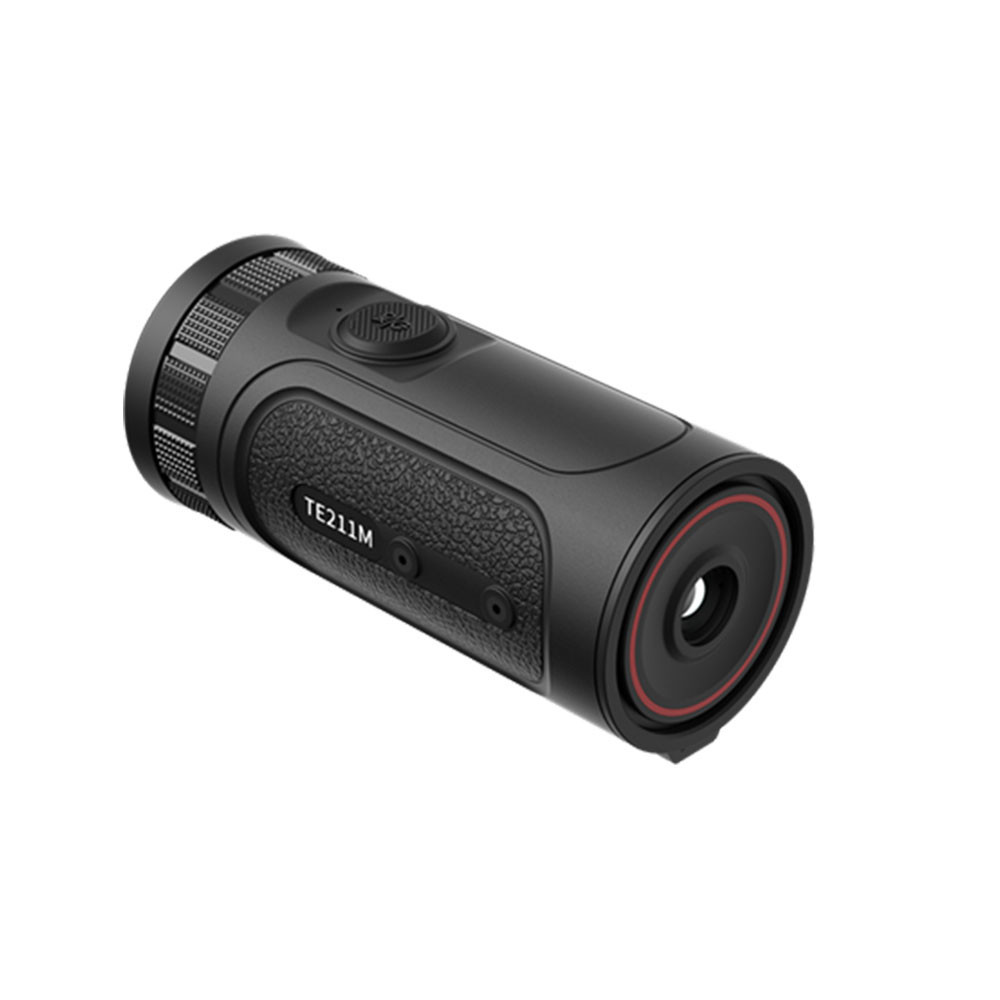

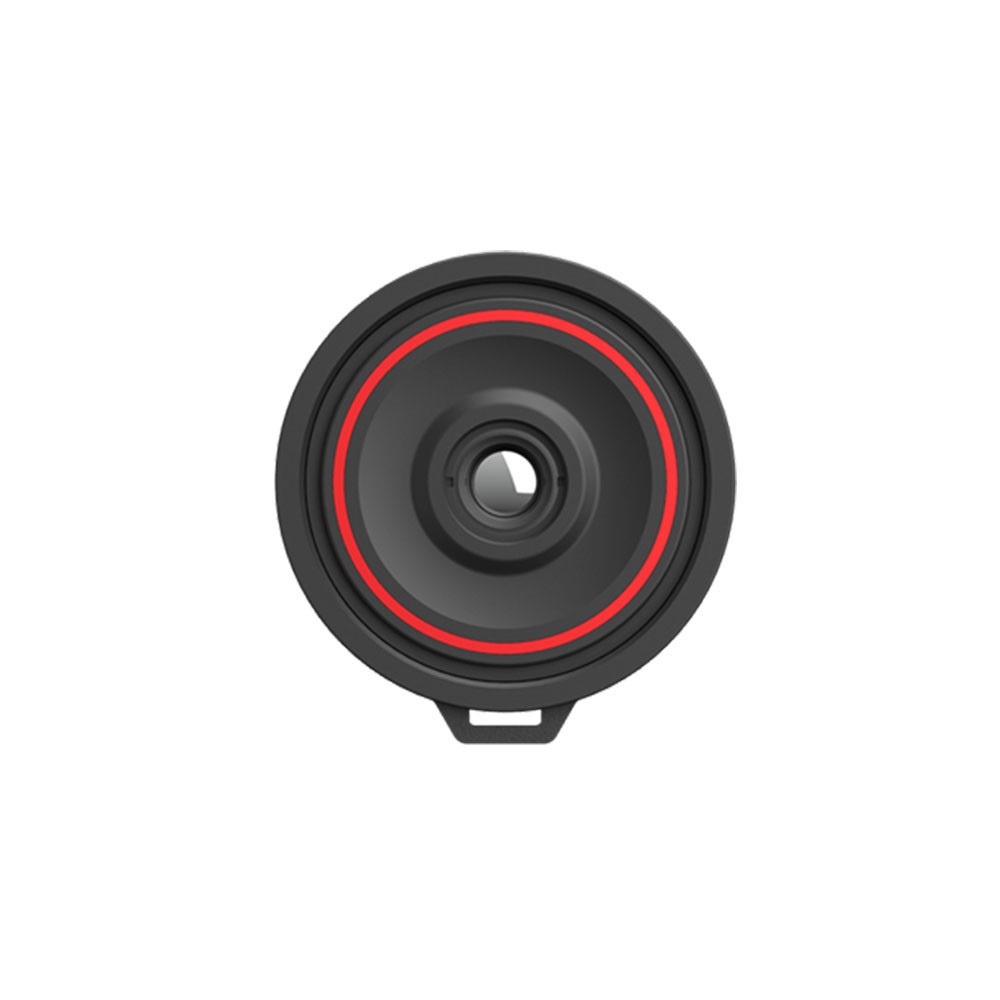

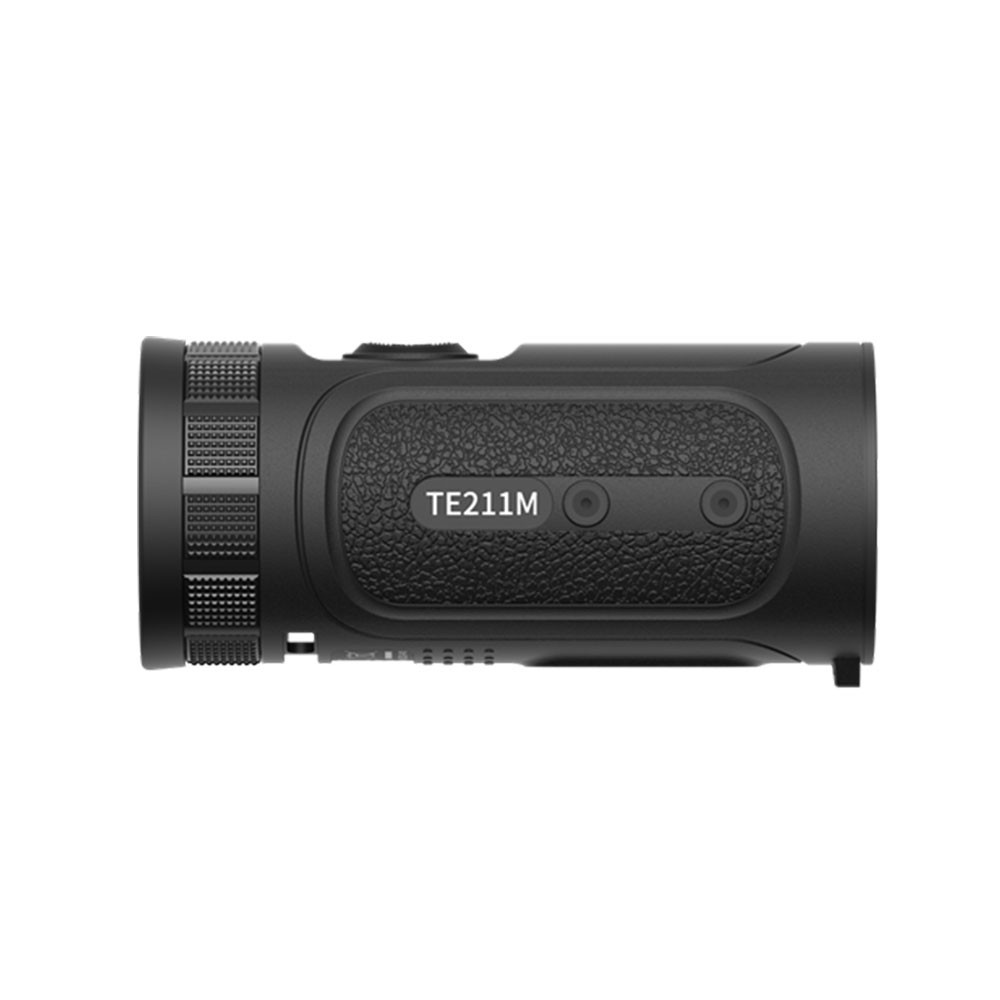

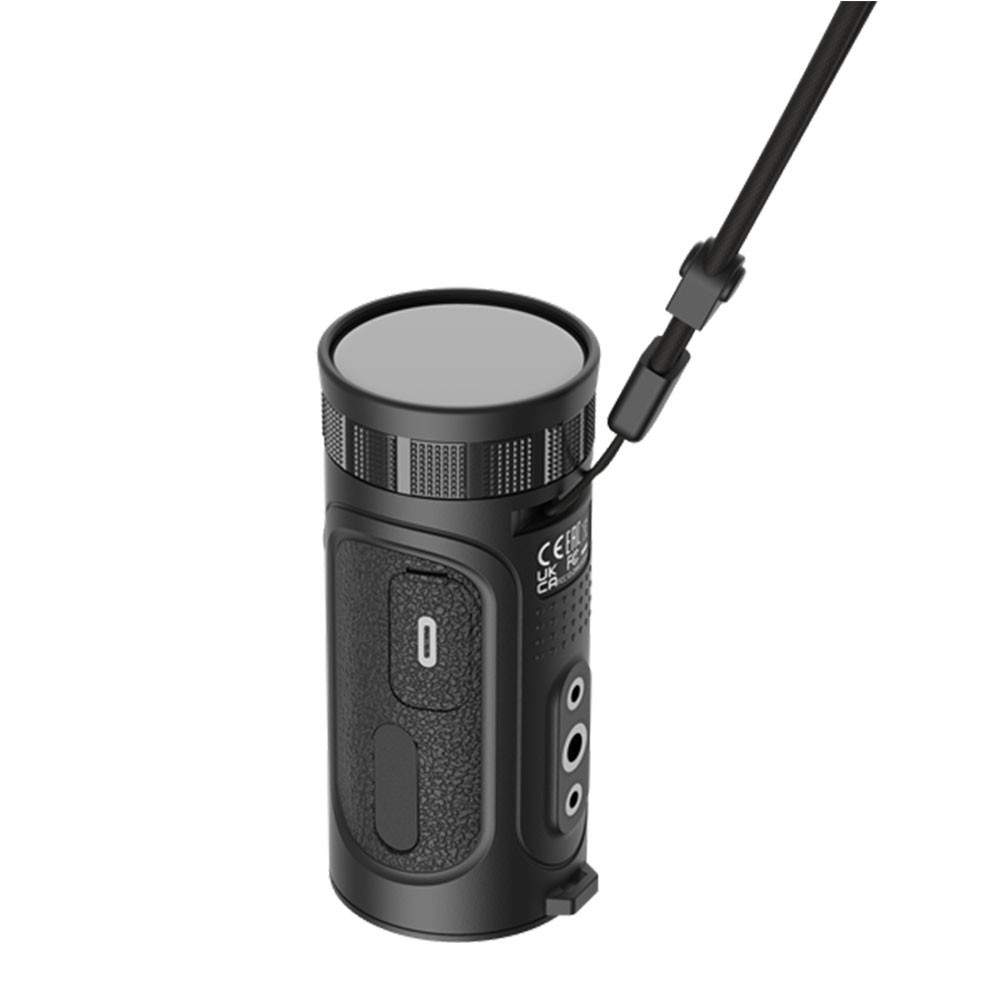

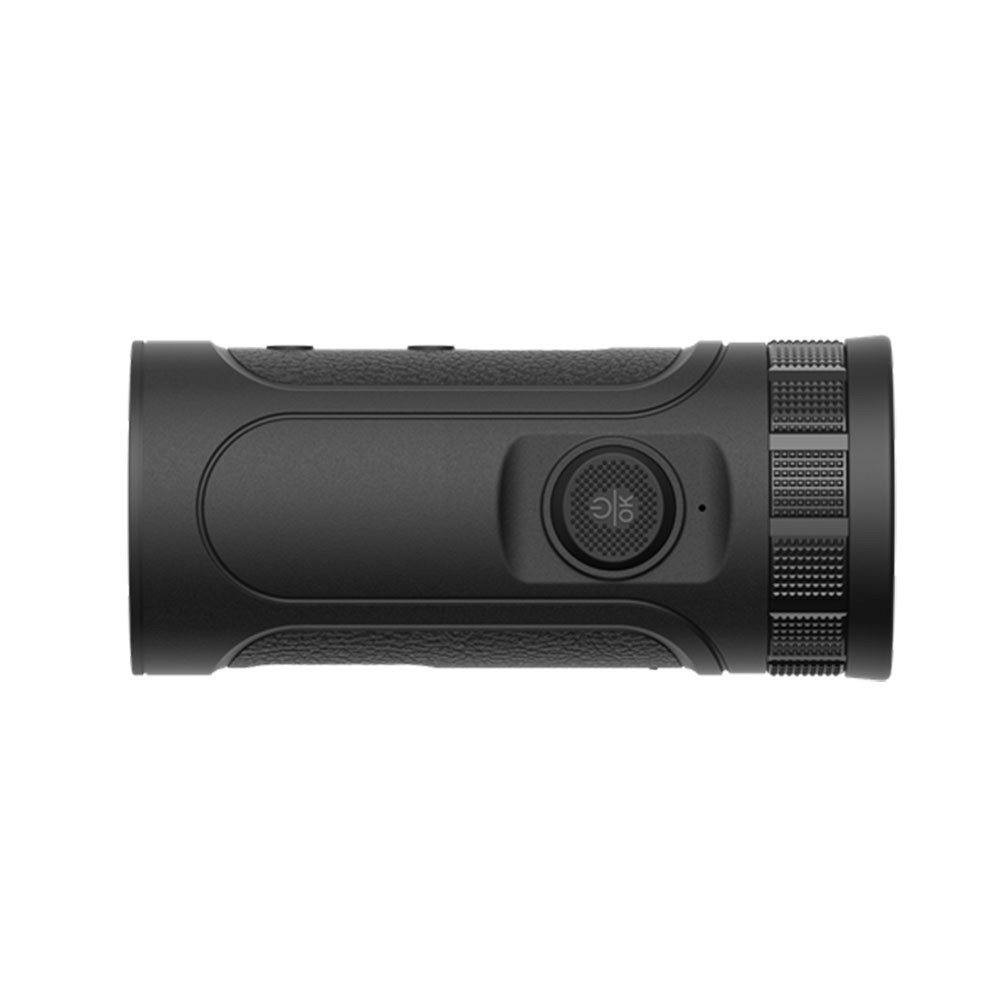

Handheld Mini Thermal Imaging Monocular

TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256×192 infrared detector and a 10mm lens, providing a detection range of up to 500 meters. The integrated 1.43” AMOLED full-color touchscreen allows you to view infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during extended use. With just a 10-minute quick charge, it offers up to 1 hour of continuous use, making it the ideal companion by your side.

256×192@12μm Resolution

Only 205g Ultra-Lightweight

One-button control Smooth Operation

IP67 Encapsulation



Powerful 12μm detector Sharp image quality

Equipped with a powerful 12μm detector, the TE Mini delivers crisp image quality that distinguishes targets from the surroundings, even in darkness.



Ultra-lightweight Effortlessly portable

The TE Mini only weighs over 200 grams with a compact, pocket-sized design, small like a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.

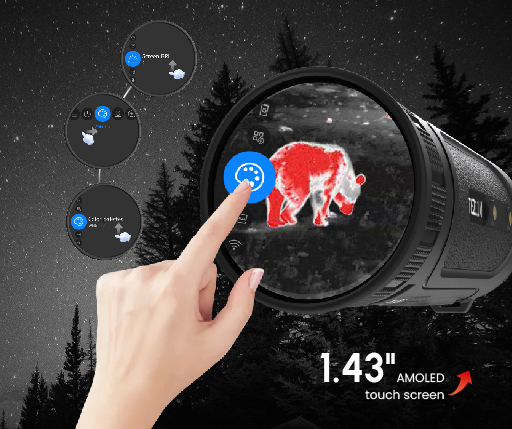

Game-changing Large touch screen

The TE Mini features an innovative large touch screen that provides direct ultra-clear viewing and seamless touch control. Users can easily swipe the menu and select functions with simple touch operations.



Extended battery 20W quick charge

The TE Mini integrates a built-in rechargeable battery that provides up to 6 hours of runtime. It features an advanced 20W quick charge function. With just 10-minute quick charging, you can enjoy 1 hour of continuous use, ensuring worry-free power.



Game-changing Large touch screen

The TE Mini features an innovative large touch screen that provides direct ultra-clear viewing and seamless touch control. Users can easily swipe the menu and select functions with simple touch operations.



Audio-visual sync

Photos, videos, and audio recordings are all available. With 16GB built-in storage, you can flexibly capture and share exciting moments in the wild anytime and anywhere.



Dual-band WiFi connection

The WiFi function has been upgraded to dual-band, providing stronger connectivity. The TE Series features faster transmission speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transmission distance of 26.5 meters.





Data
Data storage:
16 GB
Base magnification (x):
1.2
Connectors:
USB-C (charging and data transfer)
Diopter compensation:
-5 - +5 dpt
Other properties:

photo-video recording; Bluetooth, Wi-fi, microphone

Power supply:
Built-in battery, 18W quick charging
Detection distance:

up to 500 m

Manufacturer:
Guide
Manufacturer's warranty:
3 years manufacturer's warranty, 10 years for the sensor
Device structure:
Monocular
Image repetition frequency:
50 Hz
Screen color modes:
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Látószög (°):
13.5°×13.1°
Dimensions:
49 × 49 × 111 mm
Working / storage temperature:
-20°C - +50°C / -
Spectral (wavelength) range:
8μm - 14μm
Sensor:
256 x 192 pixel sensor with 12 μm pixel size, NETD <= 30mK
Color:
black
In the box:

Thermal camera, wrist strap, USB-C cable (quick charging adapter, case and lens cleaning cloth are not included, despite the user's manual's data)

Weight (g):
205
Operating time:

up to 6 hours

Water resistance:
IP67
