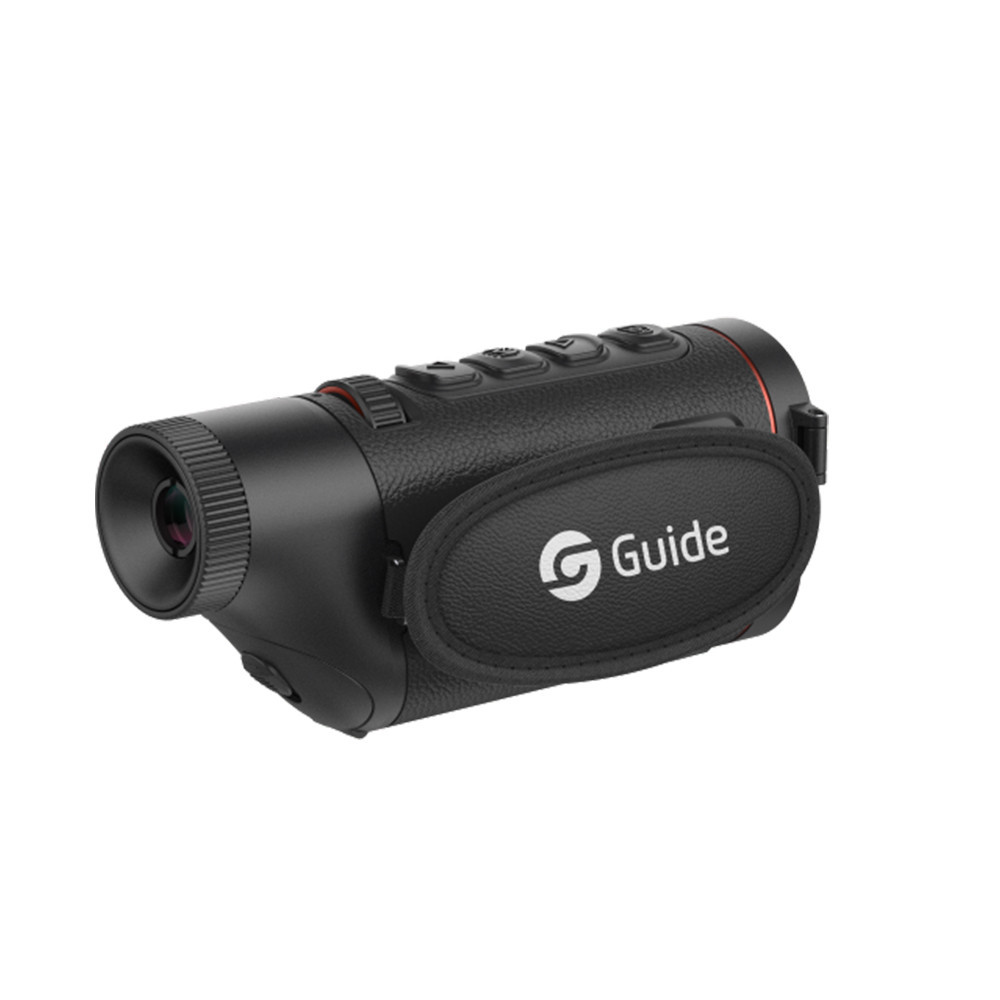

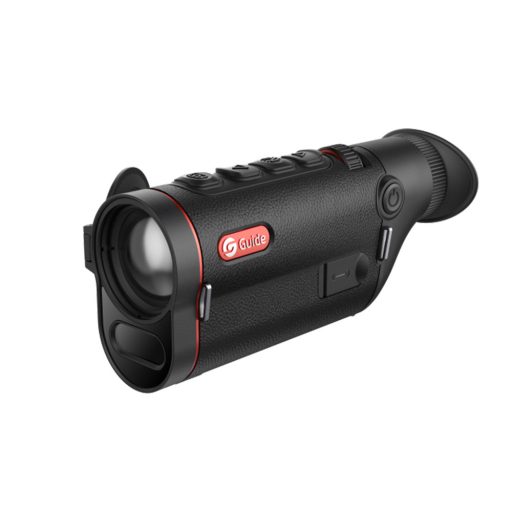

Guide TD633 LRF Thermal Monocular

Item number:
GUITD633LRF
User's Guide:

.

Thermal sensor: 640x512 12μm
Thermal sensor NETD: 20 mK
Screen: 0.36'' AMOLED 1280×960
Magnification interval (x): 1.8 – 14.4
Lens: 35 mm, F1.0, manual focus
Horizontal field of view (°): 12.5°
699 900 Ft
Out of stock
Loan calculator
Related products
Loading…
Details

High-sensitivity detector, NETD down to 20mK

The TD Gen3 LRF Series features 12μm infrared detector with 640×512 and 400×300 resolutions, and offers 35mm lens, delivering impressively crisp images even in complete darkness.

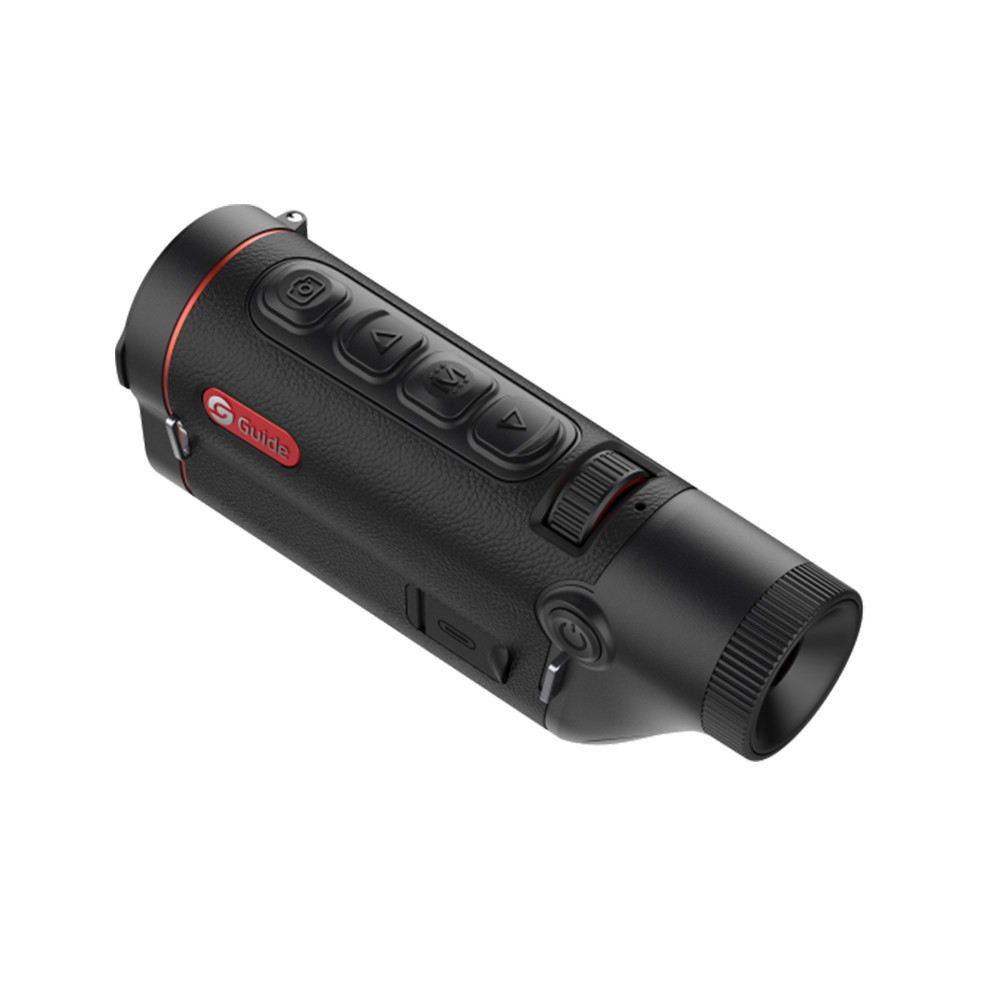

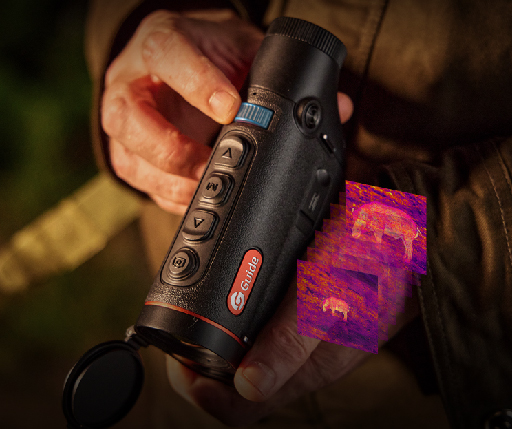

Ambidextrous design, one-handed operation

The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.

Fine-tuning focus,scroll with fingers

The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.

Upgraded visuals,enlarged AMOLED display

Building on the previous generation, the TD Gen3 LRF Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.

Built-in LRF, precise target distance

The built-in laser rangefinder module is seamlessly integrated into the device design, enhancing portability and practicality, with a maximum range of 1000 meters for precise target location.

Extended battery life, uninterrupted power

During observation, exploration and stalking in the field, the TD Gen3 LRF Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.

Smart recording, expanded built-in storage

The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.

Data
Base magnification (x):
1.8
Eye relief:
20 mm
Connectors:
USB-C
Diopter compensation:
-6 to +6
Other properties:

Hot spot tracking; PIP; WIFI

Power supply:
Single, replaceable 18650 battery
Detection distance:
1800 m (human body)
Manufacturer:
Guide
Manufacturer's warranty:
2 years manufacturer's warranty
Thermal camera type:
Monocular
Image repetition frequency:
50 Hz
Screen color modes:
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Látószög (°):
12.5° × 10°
Dimensions:
159×54×74 mm
Operating humidity:
10 % - 95 %
Working / storage temperature:
-/ -30 °C to 60 °C
Sensor:
Uncooled VOx Infrared Detector 640 × 512, 12 μm, ≤20 mK
Color:
black
In the box:

thermal camera, replaceable 18650 battery, USB Type-C cable, Wrist strap

Rangemaster options:
1000 m hatótávolság
Rangefinder:
LRF
Weight (g):
376
Drop test:
1 m-ről történő leejtésig
Operating time:

up to 10 hours

Water resistance:
IP67
