Guide T120V Thermal Camera

Name: Guide T120V Thermal Camera
Brand: Guide
SKU: GUIT120V
Price: 99900 HUF
Availability: InStock

Article No.:

GUIT120V

For entry level industrial purposes

Equipped also with CMOS camera

User's Guide:

Hungarian version

Thermal sensor: 120x90 17μm

Thermal sensor NETD: 60 mK

Screen: 320x240 pixel 2.4'',TFT

Magnification interval (x): 1 – 1

Lens: 2.28 mm, F1.13, fix focus

139 900 Ft

99 900 Ft

In stock

Details

Entry-level Portable Thermal Camera

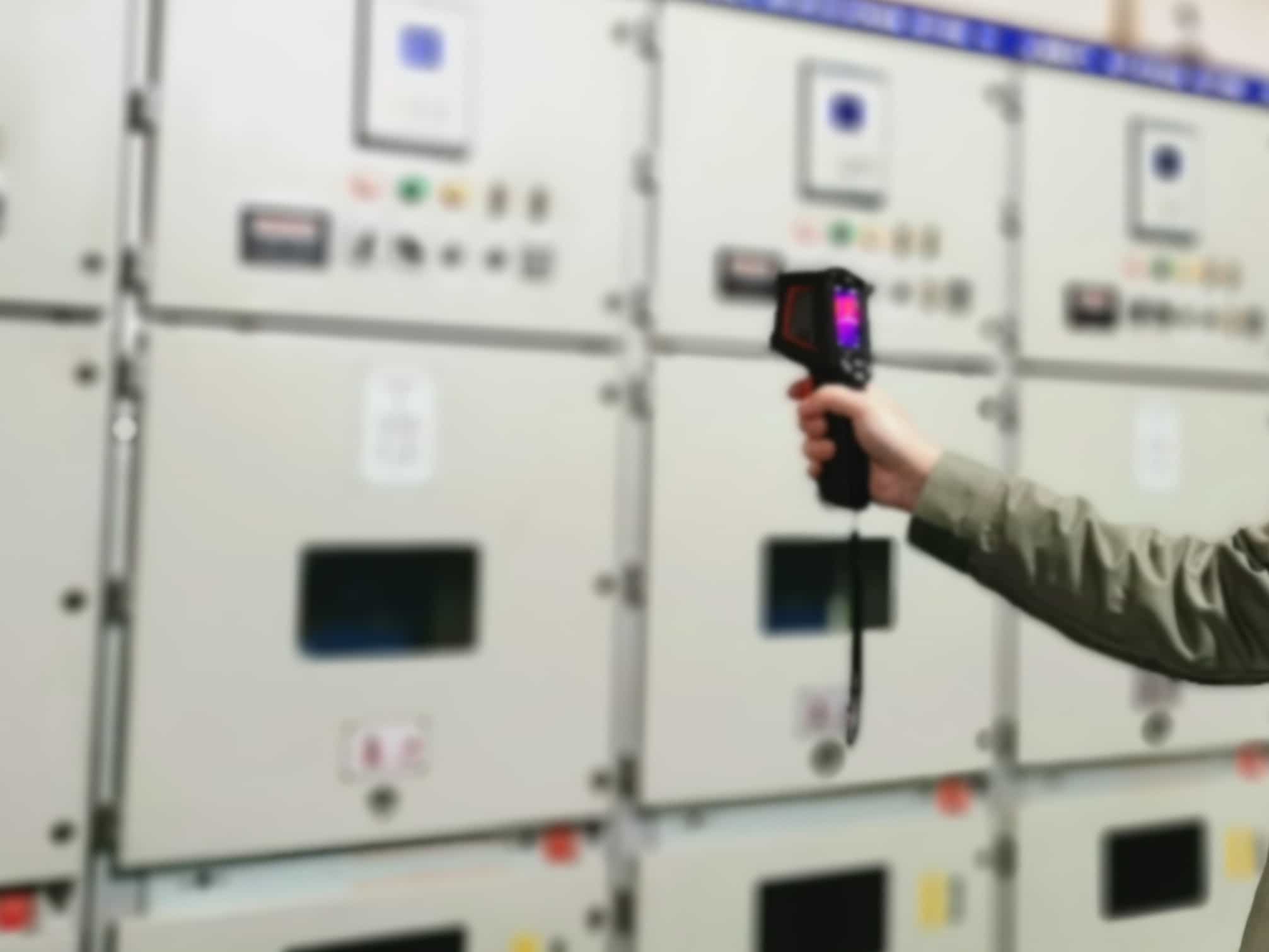

T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.

120x90IR resolution
8HrsOperating time
1 secondTurn on
IP54Encapsulation
Digital CMOS camera, IR, VIS and PIP

• Boot-up in 1 second Boot up and display fully radiometric image instantly Full screen max & min temperature alarm. 2.4 inch Large Display , 240x320 pixel Color LCD

• Good-handle Buttons Ergonomic design Easy to operate even wear the gloves. Trigger button for photo taking

• 8-hour Battery Life Low power consumption Large capacity battery. 2-hour Quick Charge ,USB Type-C Interface High power quick charge

• IR/Visible/Laser Indicator Pinpoint targets precisely. Rugged Design, 2-meter Drop Test, IP54 Encapsulation

Info

Data storage:

16 GB TF (micro USB) card, up to 32 GB compatible

Other properties:

with CMOS camera and LED flash

Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature, date and time format
battery can be charged in the camera or outside, charging time 2.5 hours in the camera, 5 hours in external charger
automatic turning off, sleep mode
maximum humidity <95%
Certificate: CE, FCC, ROHS

Connectors:

USB-C

Digital zoom:

EAN code:

6970883550074

Power supply:

built-in, rechargeable Li-ion battery

Video recording:

Manufacturer:

Guide

Manufacturer's warranty:

2 years manufacturer's warranty

Manufacturer's article number:

T120V

Thermal camera type:

Handheld camera

IFOV:

7.6 mrad

Image repetition frequency:

25 / 9 Hz

Screen color modes:

6 color modes

Látószög (°):

50°x38°

Measurement properties:

Temperature ranges: -20°C - 400°C

Accuracy: +/- 2°C, or +/- 2 % for ambient temperatures between 15 and 30°C, for object temperatures above 0°C

Dimensions:

194x61.5x76 mm

Working / storage temperature:

-10 - +50 / -40 - +70°C

Magnification:

Spectral (wavelength) range:

7.5 - 14 μm

Sensor:

120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK,

Color:

grey

Picture resolution:

.jpeg 120x90, 320x240 CMOS

Video resolution:

In the box:

camera, wrist strap, 16 GB TF card, battery charger, USB-C cable, user's manual

Weight (g):

350

Drop test:

fall resistance 2 m

Operating time:

8 hours

Water resistance:

IP54

Guide T120V Thermal Camera

139 900 Ft

99 900 Ft
